Chicago 540-LDCP Wall Mount Faucet (Discontinued)

calcActive())">

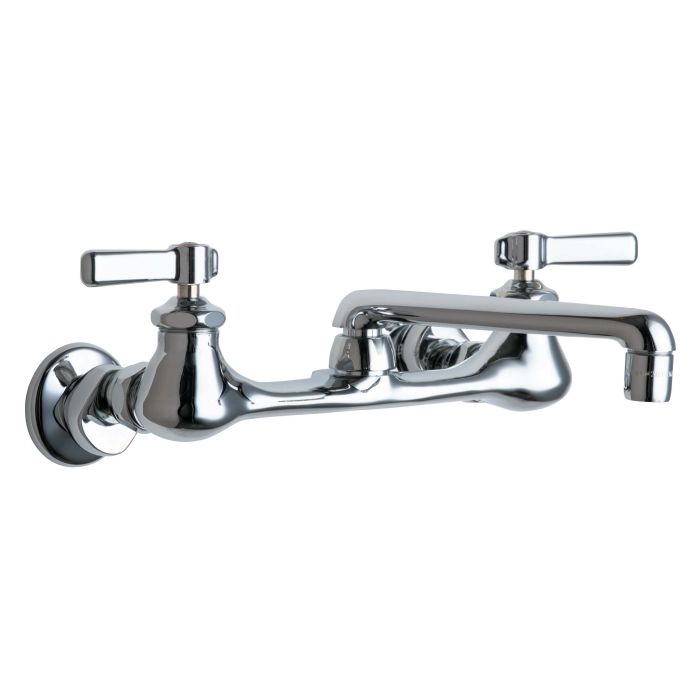

Chicago Faucets No. 540-LDCP, polished chrome plated solid cast brass construction. 6" C-C swing spout with 2.2 GPM pressure compensating aerator outlet. 2-3/8" metal lever handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. 3/8" offset inlet supply arms with adjustable 7-1/4" to 8 3/4" centers. This product meets ADA requirements and is tested and certified to ASME A112.18.1 and CSA B125 industry standards.
h3. Product Type
Sink Faucet
h3. Features & Specifications
* 6" C-C Cast Brass Swing Spout
* 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
* 2 3/8" Metal Lever Handles with Secured Red and Blue Service Buttons
* Quaturn™ Operating Cartridges
* 3/8" Offset Adjustable Supply Arms with 1/2" NPT Female Thread Inlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
* NSF 61, Section 9
* ADA ANSI/ICC A117.1
Out of stock
- SKU
- 115305
$0.00
Description / Chicago 540-LDCP Wall Mount Faucet (Discontinued)
Chicago Faucets No. 540-LDCP, polished chrome plated solid cast brass construction. 6" C-C swing spout with 2.2 GPM pressure compensating aerator outlet. 2-3/8" metal lever handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. 3/8" offset inlet supply arms with adjustable 7-1/4" to 8 3/4" centers. This product meets ADA requirements and is tested and certified to ASME A112.18.1 and CSA B125 industry standards.
h3. Product Type
Sink Faucet
h3. Features & Specifications
* 6" C-C Cast Brass Swing Spout
* 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
* 2 3/8" Metal Lever Handles with Secured Red and Blue Service Buttons
* Quaturn™ Operating Cartridges
* 3/8" Offset Adjustable Supply Arms with 1/2" NPT Female Thread Inlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
* NSF 61, Section 9
* ADA ANSI/ICC A117.1
More Information
Manufacturer | Chicago |
---|---|
Model # | 540-LDCP |
Manufacturer Part # | 540-LDCP |
Mounting Holes | 2 |
Aerator GPM Flow Rate | 2.2 GPM |
Faucet Spout Reach | 6" |
Cartridge Type | Quaturn Compression |
Height (inches) | 2 |
