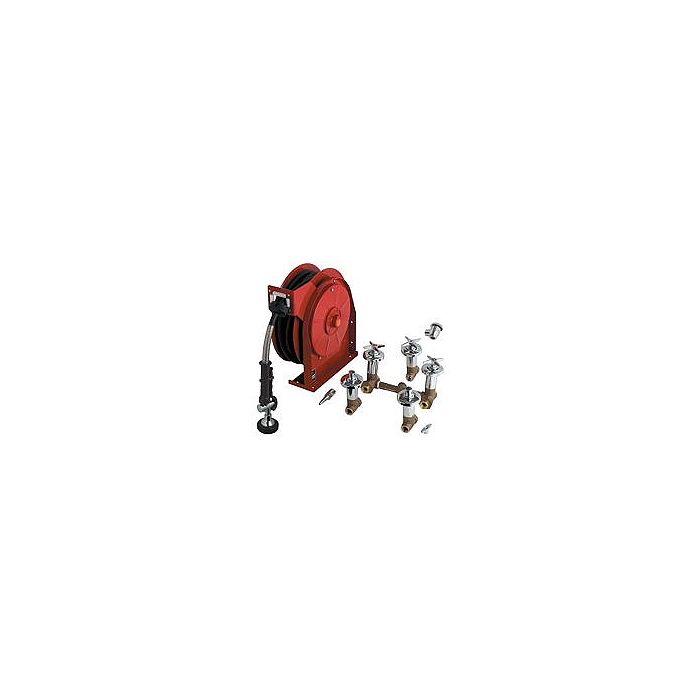

Chicago 536-NF Hose Reel

Chicago Faucets No. 536-NF. 2.5 GPM (9.5 L/min) hose reel valve spray. 3" metal cross handle(s) with eight point tapered broach and secured blue and red buttons. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 1/2" NPT female thread inlets. Retractable 35 ft. X 3/8" i.d. Rubber hose. Concealed two-valve fitting. Concealed control valve. Concealed straight wall stop valves. Mounting hardware included. This product is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA. h3. Product Type Wall Mounted Hose Reel Assembly h3. Features & Specifications • 8" Center Hose Reels • 2.5 GPM (9.5 L/min) Spray • 3" Cross Handle • Quaturn Compression Operating Cartridge • 1/2" NPT Female Thread Inlets • Retractable 35 Ft. x 3/8" I.D. Rubber Hose • Concealed Two-Valve Fitting • Concealed Control Valve • Concealed Straight Wall Stop Valves h3. Performance Specification • Rating Operating Pressure: 20-125 PSI • Rated Operating Temperature: 40-140ºF h3. Warranty • Lifetime Limited Faucet Warranty • 5-Year Limited Cartridge Warranty • 1-Year Limited Finish Warranty h3. Codes & Standards • ASME A112.18.1M • CSA B125.1 • Certified to NSF/ANSI 61, Section 9 by CSA
