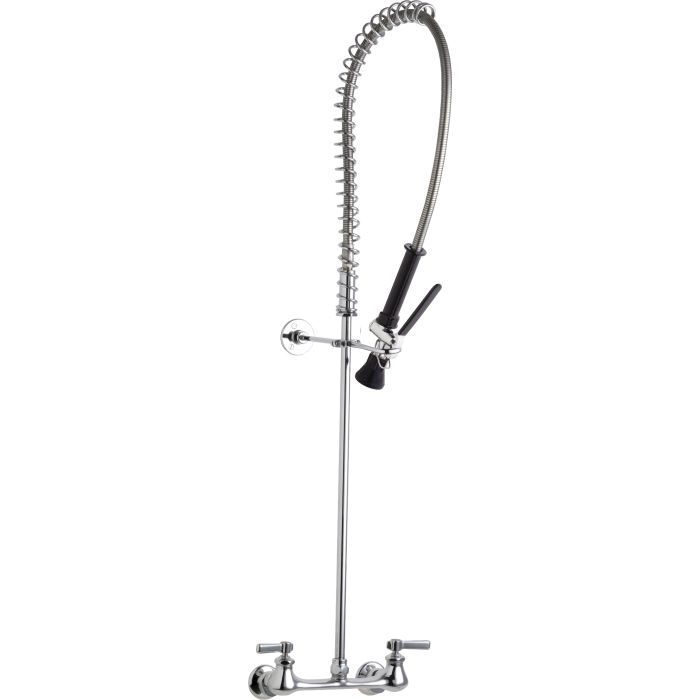

Chicago 510-GCLWSLABCP Wall Mounted Pre-Rinse Fitting

Chicago Faucets No. 510-GCLWSLABCP polished chrome plated solid brass construction. spray. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. 23" riser with spring guide. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA. h3. Product Type Wall Mounted Wall Mounted Pre-Rinse Fitting h3. Features & Specifications • 8" Body, Adjustable Arms 7 1/4" - 8 3/4" • Spray • Quaturn Compression Operating Cartridge • Offset 3/8" Offset Inlet Supply Arm with Integral Check • 3" Threaded Inlet and Shank Assembly • 23" Riser with Spring Guide h3. Performance Specification • Rating Operating Pressure: 20-125 PSI • Rated Operating Temperature: 40-140ºF h3. Warranty • Lifetime Limited Faucet Warranty • 5-Year Limited Cartridge Warranty • 1-Year Limited Finish Warranty h3. Codes & Standards • ASME A112.18.1M • CSA B125.1 • Certified to NSF/ANSI 61, Section 9 by CSA • ADA ANSI/ICC A117.1
