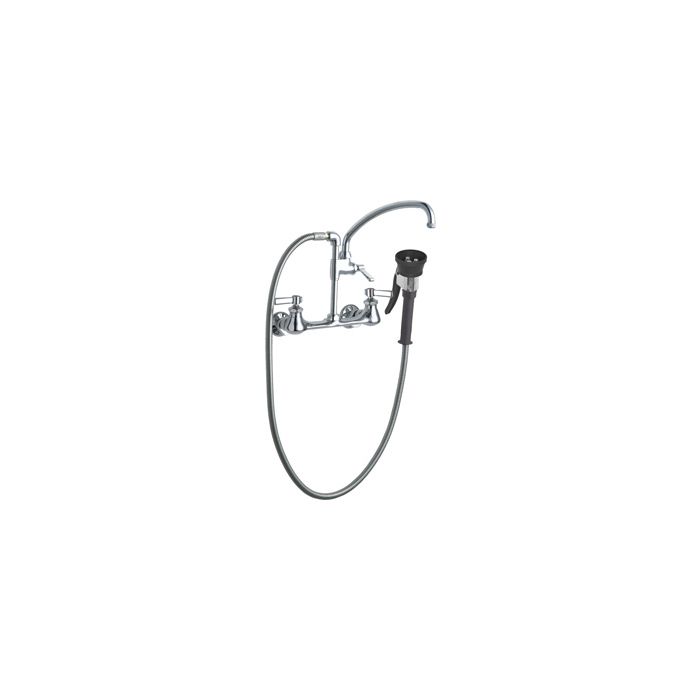

Chicago 509-GCTFCP Pot Filler (Discontinued)

Chicago Faucets No. 509-GCTFCP tin plated inside, polished chrome plated outside solid brass construction. 9 1/2" center to center vandal proof swing L type spout. Full flow quixtop with single screen design outlet. 2 3/8" metal lever handle(s) with eight point tapered broach and secured blue and red buttons. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. 60" flexible stainless steel hose. Mounting hardware included. This product is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA. h3. Product Type Wall Mounted Pot Filler with Triple Force Pre-Rinse Spray Valve h3. Features & Specifications • 8" Body, Adjustable Arms 7 1/4" - 8 3/4" • 9 1/2" Vandal Proof Swing L Type Spout • Full Flow Outlet • 2 3/8" Lever Handle • Quaturn Compression Operating Cartridge • Offset 3/8" Offset Inlet Supply Arm with Integral Check • 60" Flexible Stainless Steel Hose h3. Performance Specification • Rating Operating Pressure: 20-125 PSI • Rated Operating Temperature: 40-140ºF h3. Warranty • Lifetime Limited Faucet Warranty • 5-Year Limited Cartridge Warranty • 1-Year Limited Finish Warranty h3. Codes & Standards • ASME A112.18.1M • CSA B125.1 • Certified to NSF/ANSI 61, Section 9 by CSA
