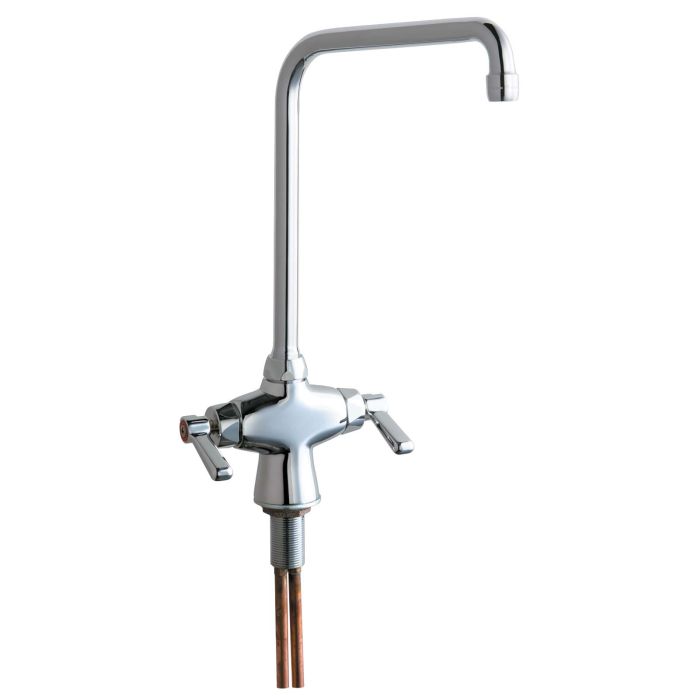

Chicago 50-HA8CP Sink Faucet (Discontinued)

Chicago Faucets No. 50-HA8CP polished chrome plated solid brass construction. 8" center to center rigid / swing field convertable high arch spout. 2.2 GPM (8.3 L/min) pressure compensating Softflo aerator. 2 3/8" metal lever handle(s) with eight point tapered broach and secured blue and red buttons. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 3/8" O.D. Copper supply tubes. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA. h3. Product Type Deck mounted single hole faucet h3. Features & Specifications * Polished chrome plated finish * Solid brass body construction * 8" C-C high rise swing spout, catalog #HA8A * 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E3 * 2 3/8" lever metal handles with eight point tapered broach and secured color coded index buttons, catalog #369 * Quaturn™ quarter-turn renewable compression cartridge that closes with water pressure, with tapered square broach to facilitate handle removal, catalog #1-100XT and #1-099XT * 3/8" o.D. copper supply tubes * Mounting hardware included h3. Performance Specification * rated operating Pressure: 20-125 PSI * rated operating Temperature: 40-140° F h3. Warranty * Lifetime Limited Faucet Warranty * 5-year Limited Cartridge Warranty * 1-year Limited Finish Warranty h3. Compliant To * ASME A112.18.1M * NSF 61, Sec. 9 * CSA B125 * ADA ANSI/ICC A117.1
