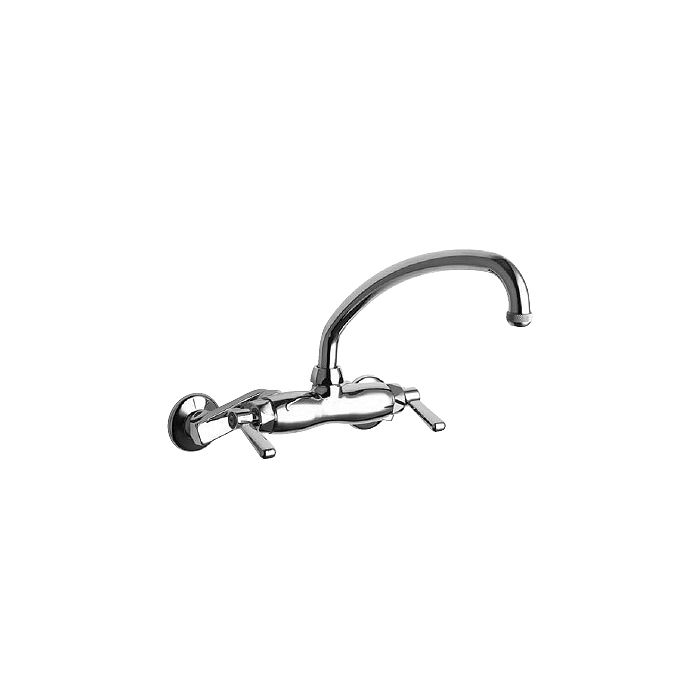

Chicago 445-L9E1CP Faucet

Chicago Faucets No. 445-L9E1CP, polished chrome plated solid cast brass construction. 9-1/2" C-C swing spout with single screen non-aerating outlet. 2-3/8" Metal lever handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. 1/2" NPT female inlet supply arms with adjustable centers from 4" to 8-3/8", with loose wall flange. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125. h3. Product Type Wall Mounted Hot and Cold Water Sink Faucet h3. Features & Specifications • 3 3/8" Body, Adjustable Arms 3" - 8 3/8" • 9 1/2" Swing L Type Spout • Full Flow Outlet • 2 3/8" Lever Handle • Quaturn Compression Operating Cartridge • Offset 2 1/2" Offset Inlet Supply Arm • 2 1/2" Offset Adjustable Supply Arms with 1/2" NPT Female Thread Inlet h3. Performance Specification • Rating Operating Pressure: 20-125 PSI • Rated Operating Temperature: 40-140ºF h3. Warranty • Lifetime Limited Faucet Warranty • 5-Year Limited Cartridge Warranty • 1-Year Limited Finish Warranty h3. Codes & Standards • ASME A112.18.1M • CSA B125.1 • Certified to NSF/ANSI 61, Section 9 by CSA • ADA ANSI/ICC A117.1
