Chicago 333-SLOE12COLDCP Metering Faucet (Discontinued)

calcActive())">

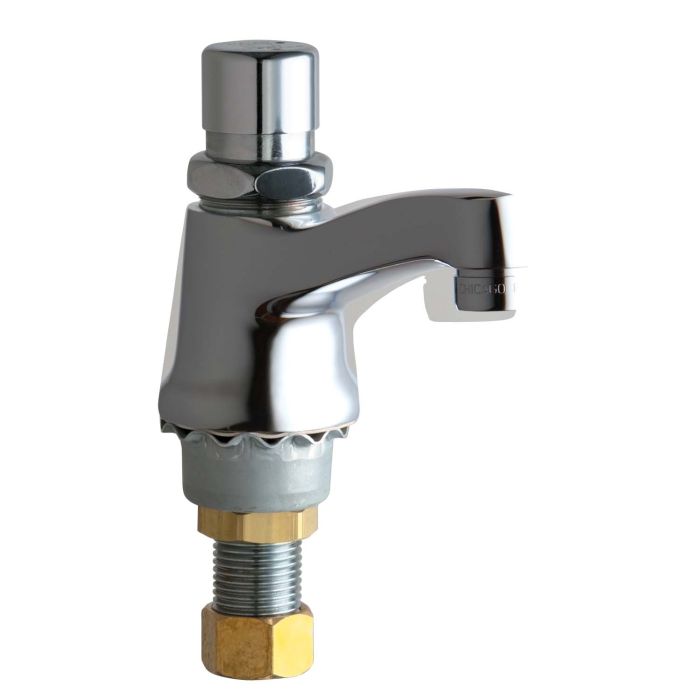

Chicago Faucets No. 333-SLOE12COLDCP, polished chrome plated solid cast brass body construction with integral 3 3/8" C-C spout and integral inlet shank. 2.2 GPM pressure compensating aerator outlet. Push button vandal-resistant metal handle with cold water index. 0.25 Gal/Cycle push button self-closing metering valve with adjustable cycle time feature. Inlet shank contains standard 1/2" NPSM threaded inlet with coupling nut for connection to 3/8" or 1/2" standard lavatory riser. All mounting hardware is included for standard lavatory installations. This product is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125.
h3. Product Type
Lavatory Metering Faucet
h3. Features & Specifications
* 3 3/8" C-C Integral Cast Spout
* 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
* NAIAD™ Adjustable Slow Closing Push Button Handle
* NAIAD™ Metering Adjustable Self Closing Cartridge
* 1/2" NPSM Supply Inlets with Coupling Nut for 3/8" or 1/2" Flexible Riser
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
Out of stock
- SKU
- 115102
$0.00
Description / Chicago 333-SLOE12COLDCP Metering Faucet (Discontinued)
Chicago Faucets No. 333-SLOE12COLDCP, polished chrome plated solid cast brass body construction with integral 3 3/8" C-C spout and integral inlet shank. 2.2 GPM pressure compensating aerator outlet. Push button vandal-resistant metal handle with cold water index. 0.25 Gal/Cycle push button self-closing metering valve with adjustable cycle time feature. Inlet shank contains standard 1/2" NPSM threaded inlet with coupling nut for connection to 3/8" or 1/2" standard lavatory riser. All mounting hardware is included for standard lavatory installations. This product is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125.
h3. Product Type
Lavatory Metering Faucet
h3. Features & Specifications
* 3 3/8" C-C Integral Cast Spout
* 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
* NAIAD™ Adjustable Slow Closing Push Button Handle
* NAIAD™ Metering Adjustable Self Closing Cartridge
* 1/2" NPSM Supply Inlets with Coupling Nut for 3/8" or 1/2" Flexible Riser
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
More Information
Manufacturer | Chicago |
---|---|
Model # | 333-SLOE12COLDCP |
Manufacturer Part # | 333-SLOE12COLDCP |
Mount Type | Deck Mount |
Mount Dimension | Single Hole |
Mounting Holes | 1 |
Aerator GPM Flow Rate | 2.2 GPM |
Faucet Spout Reach | 6.25" |
Faucet Handle Style | Push Button |
Height (inches) | 3.25 |
Width | 1.8750 |
