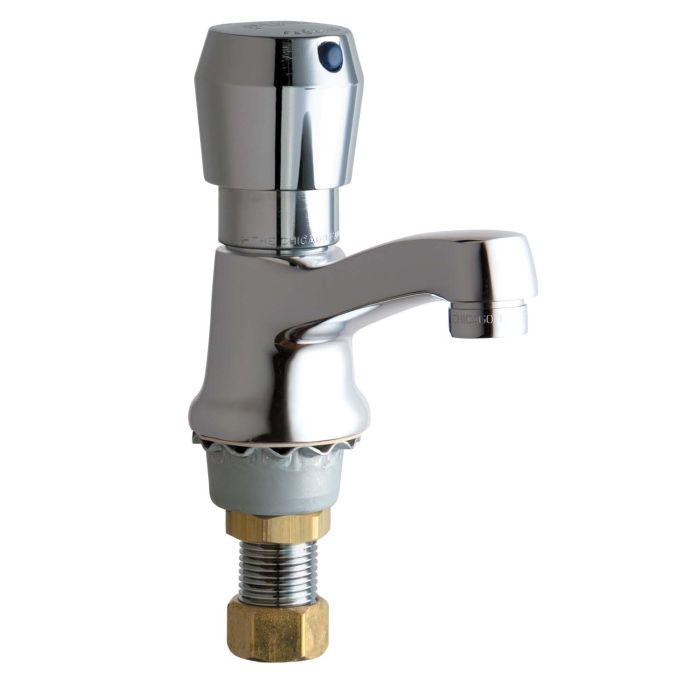

Chicago 333-665PSHCP Metering Faucet (Discontinued)

Chicago Faucets No. 333-665PSHCP, polished chrome plated solid cast brass body construction with integral 3 3/8" C-C spout and integral inlet shank. 2.2 GPM pressure compensating aerator outlet. Tapered vandal-resistant metal handle with color coded index buttons. 0.25 Gal/Cycle push button self-closing metering valve with adjustable cycle time feature. Inlet shank contains standard 1/2" NPSM threaded inlet with coupling nut for connection to 3/8" or 1/2" standard lavatory riser. All mounting hardware is included for standard lavatory installations. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125. h3. Product Type Lavatory Metering Faucet h3. Features & Specifications * 3 3/8" C-C Integral Cast Spout * 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator * 1 3/4" Round MVP™ Metering Handle with Hot and Cold Index Buttons * MVP™ Metering Adjustable Self Closing Cartridge * 1/2" NPSM Supply Inlets with Coupling Nut for 3/8" or 1/2" Flexible Riser h3. Performance Specification * Rating Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140°F h3. Warranty * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. Compliant To * ASME A112.18.1M * CSA B125.1 * NSF 61, Section 9 * ADA ANSI/ICC A117.1
