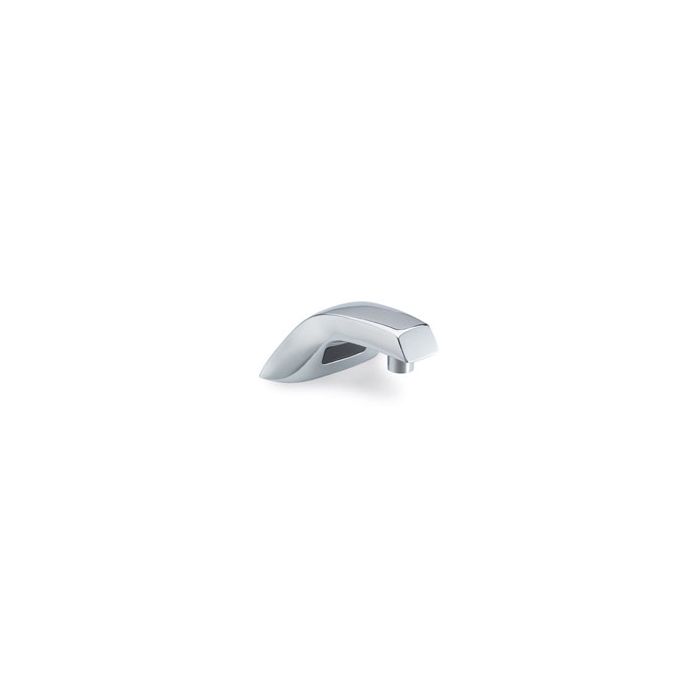

Bradley S53-141 Aerada 900 Series Accu-Zone Faucet (Discontinued)

* Reliable Infrared Metering Activation * Broad Sensing Zone Within Bowl * 0.5GPM Vandal Resistant Aerator * Automatic Sensor Adaptation to Lav Bowl * Centershank, 4" Centerset or 8" Centerset Mounting * Faucet is powered by a 24V Class II transformer *User Operation* The faucet activates water flow only when the user's hands enter a broad infrared detection zone within the lavatory bowl perimeter. The faucet turns itself off after the hands are removed from the lavatory bowl area, allowing users to dry hands or groom without wasting water. *Component Operation* The 900 Series Futura (AZ) controls water flow by using an Accu-Zone® sensor module to electronically open and close a 24V solenoid valve. Both electronic components are powered by a 24V class II transformer (provided by Bradley as an option). The Accu-Zone® sensor module uses two zone-focused infrared transmitting beams to create a large detection area confined strictly to the lavatory bowl. When the hands enter the detection area, the sensor starts water flow by electronically opening the solenoid valve. When hands leave the detection area, the sensor stops water flow by closing the solenoid valve. *Accu-Zone® Infrared Control* The Accu-Zone® sensor module uses two zone-focused infrared transmitting beams — each creating a detection area not exceeding the bowl perimeter. The detection range projects 6-9 inches forward at a 30° angle to each side and reaches 5° below horizontal. The Accu-Zone® infrared sensor is not affected by varying color tones or darkness. Direct sunlight or bright washroom lights (up to 10,000 ft. candles) will not activate the system. The incoming water supply can be tempered or cold. An optional Bradley Vernatherm™ Thermostatic Mixing Valve can be utilized to mix hot and cold supplies and deliver tempered water at a temperature no greater than 105°F. *Infrared Sensor* The sensor module uses a zone-focused infrared transmitting beam, creating a detection area not exceeding the bowl perimeter. Accu-Zone® sensors shall react (activate) when the user’s hands enter the detection area. A timing turn-off delay of 2-3 seconds results in a smooth, controlled hand-washing operation. *Solenoid* 24V, 50/60Hz, 1/8″ NPT. The electronically activated solenoid valve provides reliable performance since there are few moving parts and its operation is unaffected by most chemicals and minerals often present in municipal water supplies. *Flow Control/Rate* Operating range 20-80 PSI. Flow restrictor keeps flow rate constant at all pressures. The flow rate is .5 GPM. *Body* Chrome plated, solid cast brass body, 4″ centerset mounting with mounting plate. *Sanitary* No-touch operation reduces water/soap splatter and addresses the public’s increasing awareness and concern about communicable diseases. *Vandal Resistant* There are no surface-mounted controls to tempt vandals. The sensor module is sealed airtight and is located inside the faucet. The sensor’s infrared send-and-receive optics are protected by a shatter-resistant polycarbonate shield. The Accu-Zone® sensor will automatically shut off water flow after 30-45 seconds if a vandal attempts to trigger constant operation by covering the sensor or placing a stationary object in the sensor’s detection zone.
