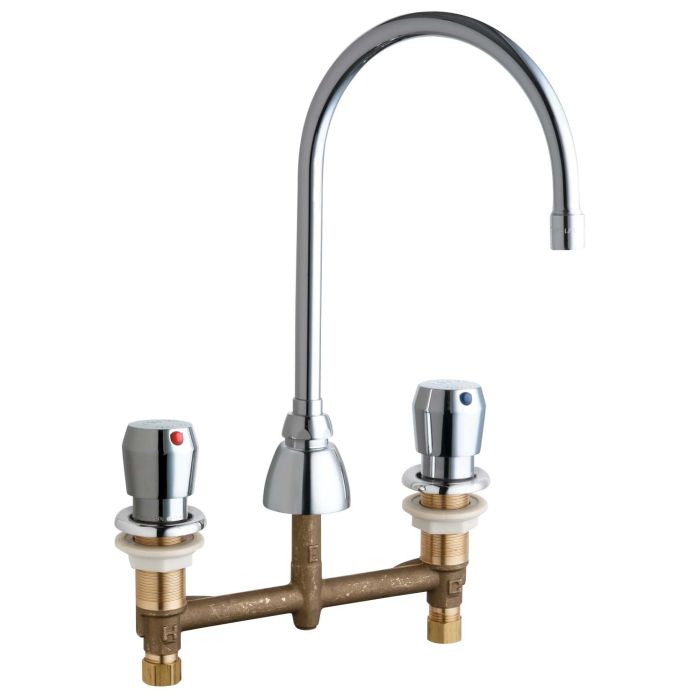

786-E3-633CP Concealed Metering Faucet

Chicago Faucets No. 786-E3-665CP, Polished chrome plated solid brass body and spout. 5 1/4" C-C rigid/swing field convertible gooseneck spout. 2.2 GPM pressure compensating aerator outlet. Tapered vandal resistant metering handle with color coded index buttons. MVP™ push button, 0.25 gal/cycle self closing metering cartridge. 8" rigid valve body centers with 1/2" NPSM threaded inlets with coupling nuts for connection to 3/8" or 1/2" standard flexible risers. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61, Sec. 9 and CSA B125. h3. PRODUCT TYPE Deck mounted 8" widespread metering faucet h3. FEATURES & SPECIFICATIONS * Polished chrome plated finish * Solid brass body construction * 8" Rigid valve body centers * 5 1⁄4" C-C Rigid/Swing field convertible gooseneck spout, catalog #GN2A * 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E3 * Tapered vandal resistant metering handle with color coded index buttons * 0.25 Gal/Cycle Max. * MVP™ push button, self closing metering cartridge * 1⁄2" NPSM supply inlets with coupling nuts for 3/8" or 1⁄2" flexible risers * Mounting hardware included h3. PERFORMANCE SPECIFICATION * Rated Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140° F h3. WARRANTY * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. COMPLIANT TO * ASME A112.18.1M * NSF 61, Sec. 9 * CSA B125 * ADA
